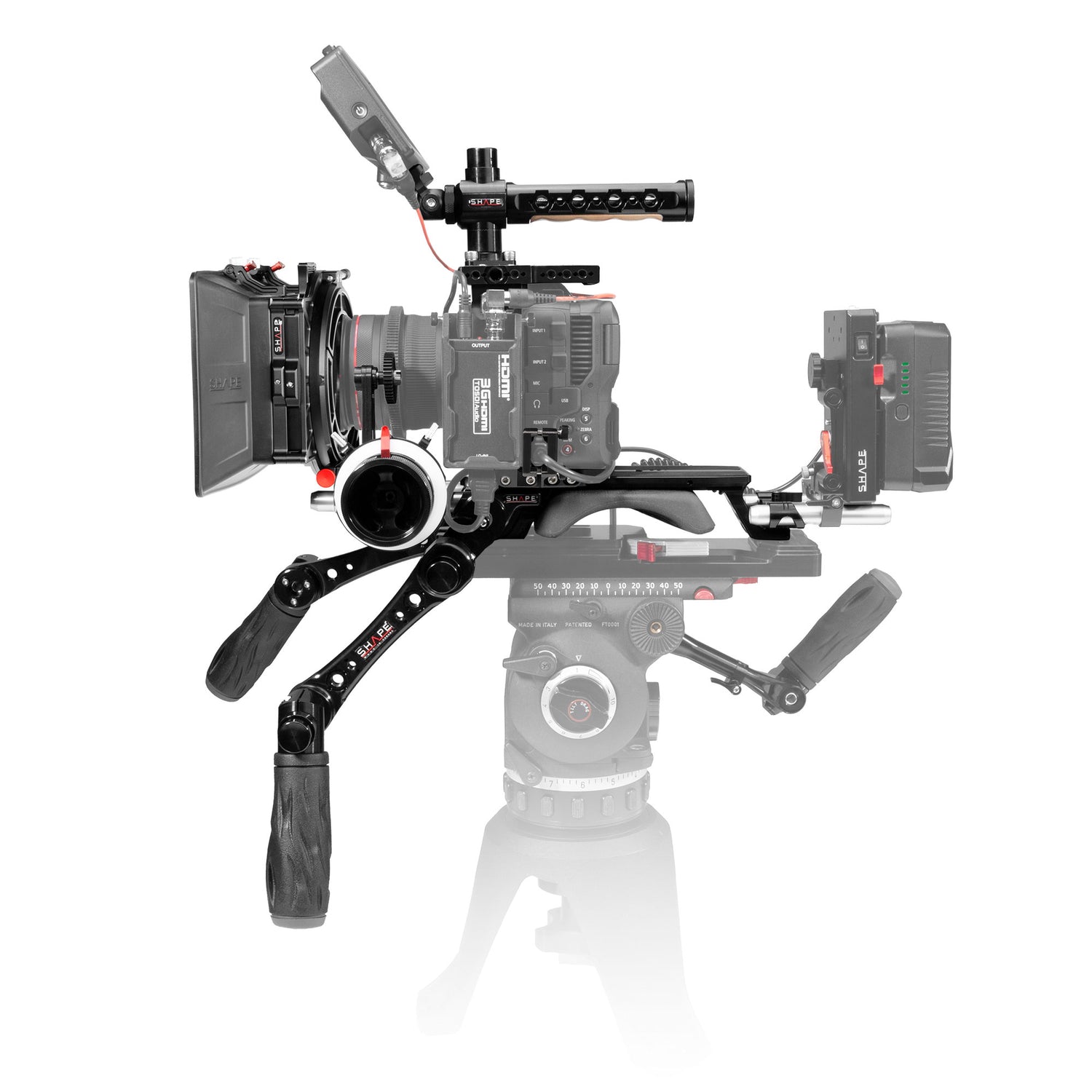

Base, cage avec poignées, matte box et follow focus pour Canon C70

La poignée en forme de L présente une connexion solide à votre plaque supérieure à l'aide de vis de montage. Elle est également dotée de la technologie SHAPE Push-Button, qui permet des ajustements rapides de l'équilibre, une rotation de 360 degrés et un verrouillage dans n'importe quelle position. La poignée est construite en aluminium anodisé et est doublée d'une prise en bois d'érable canadien. Elle comporte de nombreux points de fixation d'accessoires filetés de type ARRI 3/8″-16. La section avant de la poignée comporte un cold shoe avec un support de montage inclinable à filetage 1/4″-20 pour monter des accessoires tels qu'un moniteur, une lampe vidéo ou un microphone pesant jusqu'à 4,4 lb. Chaque extrémité est sécurisée par une vis de blocage moletée. Une fois l'accessoire monté, il peut être incliné et verrouillé à n'importe quel angle avec la clé Allen incluse.

Canon C70 camera cage (C70CAGE)

Add accessories and handheld functionality to your Canon C70 camera with this kit made of CNC aluminum. It includes a form fitting side plate, a top plate and the adaptor plate connecting together with the side post to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with ARRI standard anti rotating holes. The top plate is also designed to fit the factory Canon C70 top handle. An offset Cold Shoe fits perfectly the native microphones bracket of the camera. A detachable lock system to secure and hold in place your 4K FULL HDMI cable is included. The bottom of the plate features several 1/4″-20 and 3/8″-16 holes for mounting and balancing your camera on equipment like a tripod.

Compact REVOLT shoulder baseplate (BP20)

The compact REVOLT shoulder baseplate (BP20) is a lighter, fixed-plate version of the REVOLT VCT universal baseplate (BP10) with a magnetic bracket system that swivels the baseplate to the left for easy access to the camera screws. It includes 2 standard ARRI rosettes for handles and a standard quick release adapter compatible with most VCT tripod plates. Rubber pads on the top of the plate protect your camera. Two 15 mm lightweight rod blocks can be fixed to the front and rear of the baseplate, allowing you to install additional camera accessories. The thick gel shoulder pad keeps you comfortable on set all day long, even off the tripod. The baseplate incorporates a tool box to store your extra screws and magnetic retention for a hex key.

Compact quick handle Arri rosette black (HAND15)

One pair of ARRI Rosette-compatible handgrips that can be attached to cameras or camera support hardware. Each arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing for nearly endless configurations. The arms mate with ARRI Rosettes using spring-loaded locking levers. Each arm has two 1/4-20 and two 3/8-16 threaded holes with locking attachment stoppers for additional mounting options. SHAPE’s Push-button handle has been adopted by many professionals in the industry for its ease of use and strong, positive lock. We developed this patented technology to give users quick and easy adjustment of the rig. By simply pressing the button, the hub unlocks to allow 360-degree free rotation. Release, and the hub locks together; push, adjust, release. The Push-button system on the handle joint provides quick articulation near the rosette, while a second push-button joint allows you to rotate and precisely position the rubber handgrips.

Follow Focus Pro (FFPRO)

Manufactured in sleek black anodized aluminum, this special edition professional follow focus unit combines a refined look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. The SHAPE engineering team is internationally renowned for creating one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth, depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.

SHAPE MATTE BOX SWING-AWAY (AKSWA)

A silicone matte box mounted on a CNC aluminum main frame with an outer diameter of up to 124 mm. It provides a wide field of view for a variety of wide-angle lenses.
Two 4x5.6 filter trays (one rotary) with easy access handles that allow one-handed filter changes. 4x4 filters can also be installed in the trays. The frame includes two stops at the bottom of the filter trays section to prevent the filters from falling through. The removable swing-away module makes lens changes a snap. A spring pin helps to lock the mechanism closed without manually setting the pin. 2 magnets hold it in place when closed.
Removable height adjustable rod block with one tightening knob allows micro-adjustment of height, ensuring compatibility with a wide range of lenses. The rod block can be re-installed directly on the main frame for a straight configuration. The complete kit allows three different configurations, (swing-away, straight and clip-on).

Removable light carbon fiber french flag can be attached to the top to prevent flares. A series of adapter rings are included in the kit:

Clamp-on adapter ring:	124-87 mm
Threaded aluminum adapter rings:	87-82 mm 87-77 mm 87-72 mm 87-67 mm
Fabric knicker:	124 mm



15 mm in rods (15TUBE4)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter

• 4-in length

• Hollow, non-threaded

• Tapered ends for easy connection to a rod block

• Aluminum coated with a clear finish

15 mm 8 in rods (15TUBE8)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter

• 8-in length

• Hollow, non-threaded

• Tapered ends for easy connection to a rod block

• Aluminum coated with a clear finish

(1) C70 Cage, (1) Compact REVOLT épaulière (BP20), (1) Compact quick handle Arri rosette noir (HAND15), (1 paire) 15 mm 4" tiges (15TUBE4), (1 paire) 15 mm pouces tiges (15TUBE8), (1) L-shaped poignée supérieure, (1) Follow Focus Pro (FFPRO), (1) Matte Box (MCF456)
