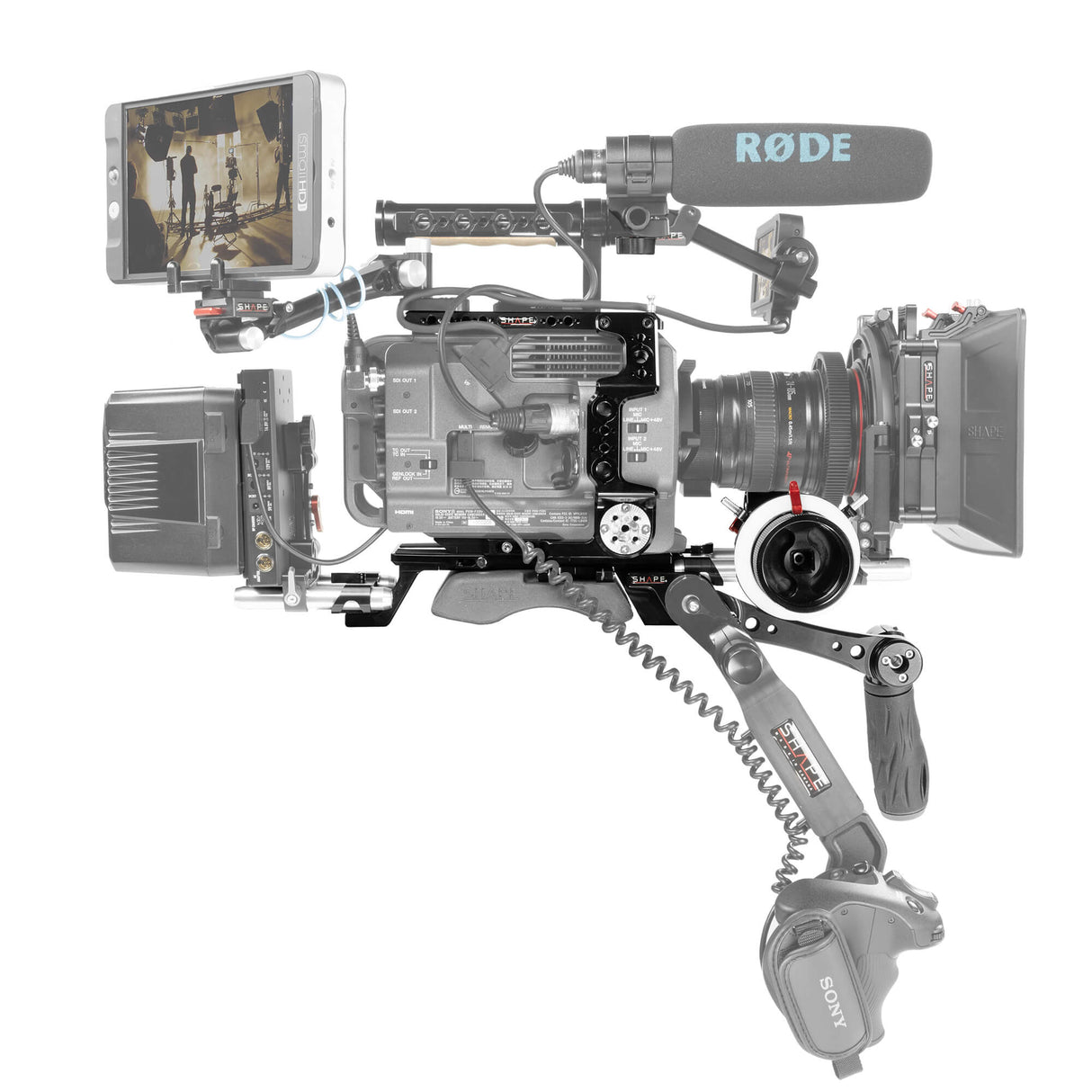

Baseplate, cage et Follow Focus Pro pour Sony FX9

Sony FX9 V-lock quick release baseplate (FX9BP)

The FX9 baseplate is designed to match the Sony FX9 optical center. The bracket system with magnet let you swivel the baseplate to the left for an easy access to the camera screws. It is designed with 2 standard Arri rosettes for handles or accessories mount. The quick release adapter plate is compatible with most VCT tripod plate and there is also a protective rubber pads on top of the plate to protect your camera. Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.

Sony FX9 camera cage (FX9CAGE)

Add accessories and handheld functionality to your Sony PXW-FX9 camera with this kit made of CNC aluminum. It includes a form fitting side plate with Arri rosette , a top plate and a rear insert plate connecting together to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with anti rotating holes. The top plate is also designed to fit the native Sony FX9 handle.

Sony FX9 rear insert plate (FX9RIP)

The rear insert plate is a CNC aluminum support plate compatible with the Sony FX9 camera. The plate mounts to the camera body via three M4 mounting screws. The center of the plate is designed with (3) 3/8-16 and (3) 1/4-20 threaded holes for tripod mount. The large surface of the plate also provides necessary support when the camera is mount to a tripod or a shoulder mount.

Follow Focus Pro (FFPRO)

Manufactured in sleek black anodized aluminum, this special edition professional follow focus unit combines a refined look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. The SHAPE engineering team is internationally renowned for creating one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth, depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.

15 mm 8 in rods (15TUBE8)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 8-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

15 mm in rods (15TUBE4)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 4-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

(1) Épaulière REVOLT compacte (BP20), (1) Plaque arrière pour Sony FX9 (FX9RIP), (1) Cage, (1) Poignée gauche avec Arri rosette et Push-Button, (1) Follow focus pro, (1 paire) 15mm 8'' rods, (1 paire) 15mm 4'' rods
