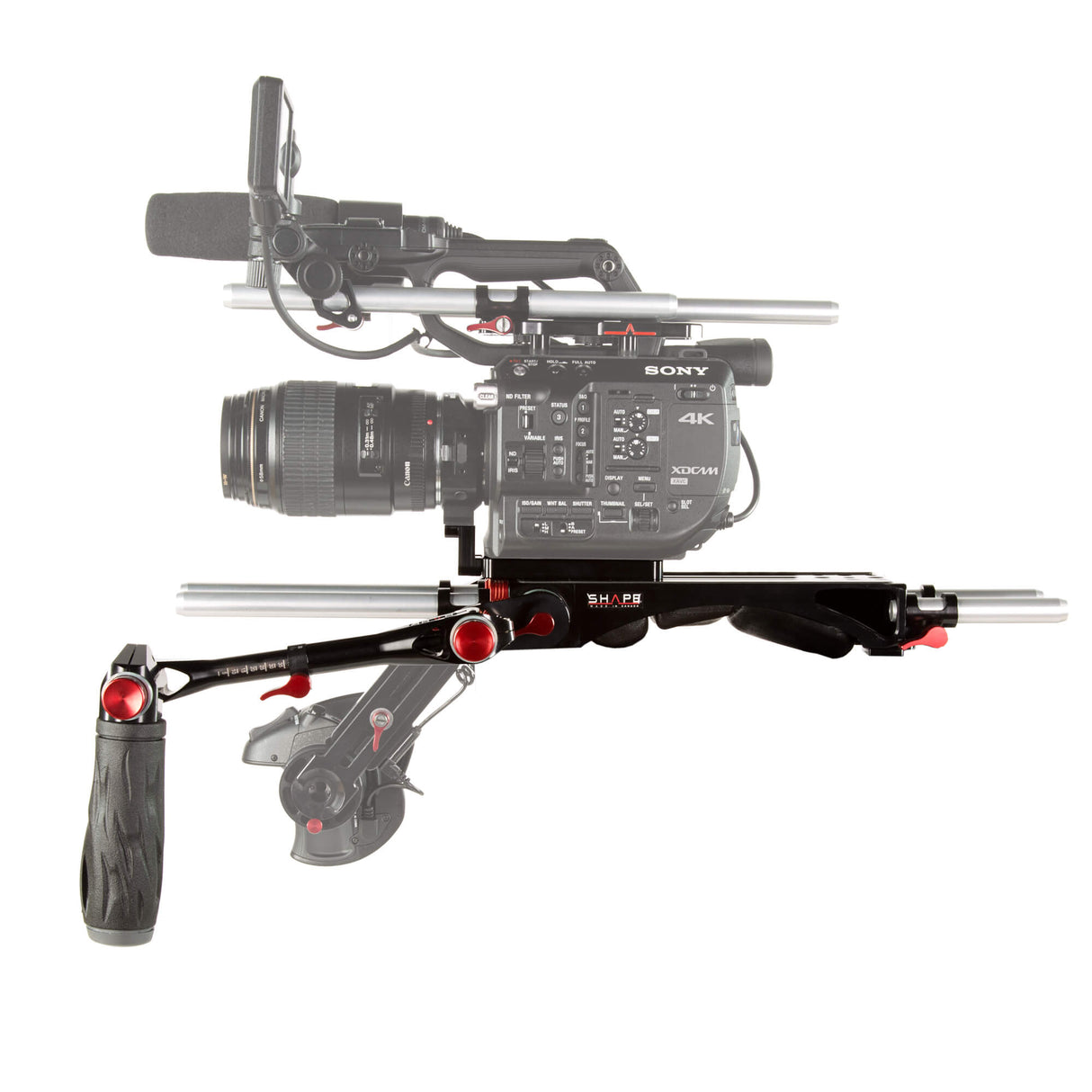

Épaulière et poignée télescopique pour Sony FS5 et FS5M2

FS5, FS5M2 0008 Vlock quick release with metabones support (FS5BP)

The SHAPE V-Lock Quick Release Baseplate is a long format baseplate and it can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4″-20 and 3/8″-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate.

The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. (2 pairs) of 15 mm rods (8″ and 4″) are included for the front adn back of the baseplate. For attaching a matte box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4″-20 and 3/8″-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. 1/4″-20 and 3/8″-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4″-20 and two 3/8″-16 camera mount screws are included.

Spare pad for BP series (BP0050)

The V-Lock Replacement Pad from SHAPE is a replacement shoulder pad for the BP SERIES v-lock quick release baseplate (BP0008, BP8000, BP7000). The pad utilizes a hook-and-loop system which allows for easy attachment and removal. The additional padding provided by the strap increases user comfort and reduces strain on the shoulder.

Sony FS5, FS5M2 adapter plate (FS5AP)

SHAPE designed the FS5/FS5M2 adapter plate to allow more adjustment when using the Sony FS5 or FS5M2 camera with the SHAPE V-lock quick release baseplate (BP0008). The adapter also comes with a removable Metabones adaptor plate (FS5MA) in the front with 3 mm of vertical adjustment to provide great support. Fixed with 2 screws, this will support the weight and reduce the stress of the camera lens mount. For a precise positioning, we designed the bracket with a 3 mm vertical adjustment to make sure it’s well positioned for the best support.

15 mm in rods (15TUBE4)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 4-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

15 mm 8 in rods (15TUBE8)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 8-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

Single telescopic handle Arri rosette left side (HAND3)

Left telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. The arm features four points of articulation (2 Push-button and 2 ratchet knob) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360°. The one near the rosette gives you more option to position the arm for your comfort.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

(1) BASEPLATE WITH SHOULDER MOUNT AND ROD BLOC SYSTEM (BP0008), (1) REMOVABLE SHOULDER PAD (BP0050), (1) SONY FS5 METABONES ADAPTER, (2) 15MM RODS 8”, (2) 15MM RODS 4”, (1) TELESCOPIC HANDLE WITH PUSH-BUTTON AND ARRI ROSETTE MOUNT (LEFT SIDE)
