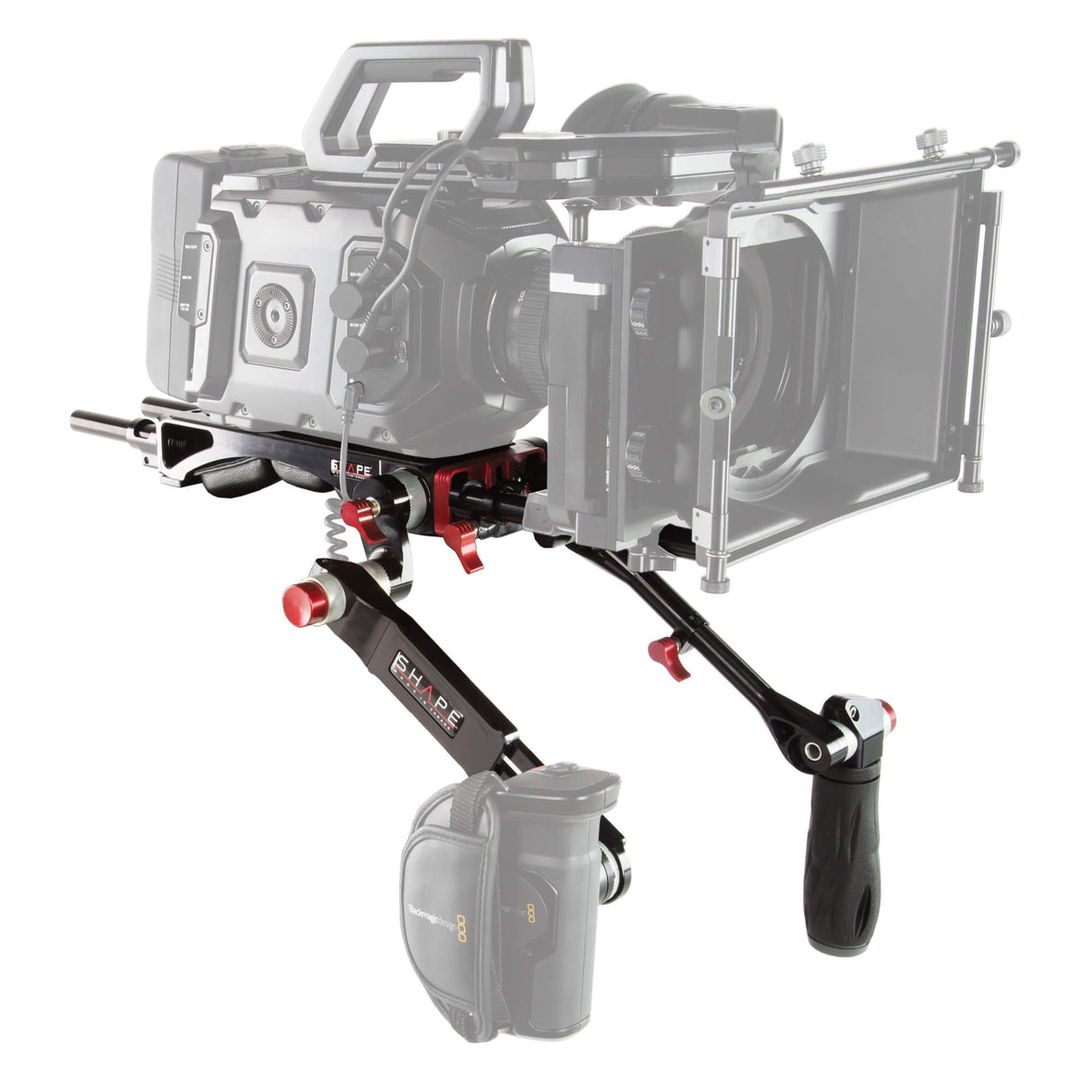

Épaulière pour Blackmagic Ursa Mini

L'ensemble Blackmagic Ursa Mini comprend la plaque de fixation Blackmagic Ursa Mini , poignée d'éxtension a distance Ursa Mini , et poignée SHAPE avec ARRI Rosette. L'ensemble est conçu pour fournir une solution équilibrée de montage sur l'épaule et vous aider à tirer confortablement pendant de longues heures. Il peut être utilisé monté sur épaule, sur trépied et fixé aux adaptateurs de trépied V-lock. Il doit être utilisé avec des caméras équipées de viewfinders externes. La baseplate comprend une épaulière amovible et des adaptateurs de rosette pour les poignées standard ARRI. Il a des filetages de montage pour trépied 1/4"-20 et 3/8"-16 et un adaptateur delta V-lock pour fixer la plaque de trépied SHAPE VCT (VCTSH) ou toute plaque de trépied VCT-14.

SHAPE VCT universal baseplate Arri rosette (BPVCT)

The SHAPE VCT universal baseplate Arri rosette (BPVCT) is a lighter version of the V-lock quick release baseplate (BP0008) without the rear rod bloc. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate.

The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. One pair of 15 mm 8" rods are included for the front. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. Multiple 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included.

• Made of CNC Machined Aluminum


• Design to be shoulder or tripod mounted


• Compatible with cameras with external viewfinders


• Compatible with 15 or 19 mm LWS brackets


• Adjust rod height bloc to match camera optical center


• Protective rubber pads to protect your camera


• Designed with 2 standard Arri rosettes for handles mount


• Designed with 3 camera mount slots


• 1/4""-20 and 3/8""-16 accessory mount threads


• Removable velcro shoulder pad


• Quick release adapter plate compatible with VCT-14 tripod plate

Spare pad for BP series (BP0050)

The V-Lock Replacement Pad from SHAPE is a replacement shoulder pad for the BP SERIES v-lock quick release baseplate (BP0008, BP8000, BP7000). The pad utilizes a hook-and-loop system which allows for easy attachment and removal. The additional padding provided by the strap increases user comfort and reduces strain on the shoulder.

Pair of rod 15 mm female-female rod (8 in) (2ROD15FF8)

The SHAPE pair of 15 mm 8" female-female rods are anodized aluminum rods with 1/2"-13 threaded female extremities. The rods are 8" (203mm) long and have a diameter of 0.59" (15 mm). It is compatible with 15 mm 4" or 6" male-female rods, rod bloc, and sliding rod Bloc.

Pair of rod 15 mm male-female rod (4") (2ROD15MF4)

This pair of 4" black 15 mm Extensions Rods features one male end and one female end, each with 1/2"-13 threading. The rods are composed of lightweight anodized aluminum for strength and durability.

Standard 15 mm rod for a camera support system
Lightweight anodized aluminum for strength and durability
Both extremities of the rods are threaded (1/2"-13)

Single telescopic handle Arri rosette left side (HAND3)

Left telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. The arm features four points of articulation (2 Push-button and 2 ratchet knob) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360°. The one near the rosette gives you more option to position the arm for your comfort.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

Blackmagic Ursa Mini remote extension handle (URSARH)

The Blackmagic Ursa Mini remote extension handle from SHAPE offers an adjustable arm extension for the side hand grip provided with the Ursa Mini. It features SHAPE's patented Push-Button technology for easy angle adjustment and 360-degree rotation. The extendable arm is equipped with a ratchet key to easily adjust the length of the arm. The remote extension arm enables users to fix the Ursa Mini side hand grip directly on the ARRI rosettes of the baseplate.

Lanc coil cable male-male (LANCCO11)

The SHAPE LANCCO Coiled Male to Male Cable is designed for connecting the SHAPE Remote Extension Handle to the Blackmagic Ursa Mini.
Featuring a standard LANC 2.5 mm male connector on each end, it can also be used for various other applications with cameras that support these connectors. The cable measures 11" long from end-to-end when coiled, and approximately 20" when extended.

(1) V-LOCK QUICK RELEASE BASEPLATE WITH ARRI ROSETTE MOUNT, (1) ADJUSTABLE BRACKET, (1) REMOVABLE SHOULDER PAD, (2) 15MM FEMALE-FEMALE ROD 8", (2) 15MM MALE-FEMALE ROD 4", (1) TELESCOPIC HANDLE WITH PUSH-BUTTON (LEFT SIDE)
