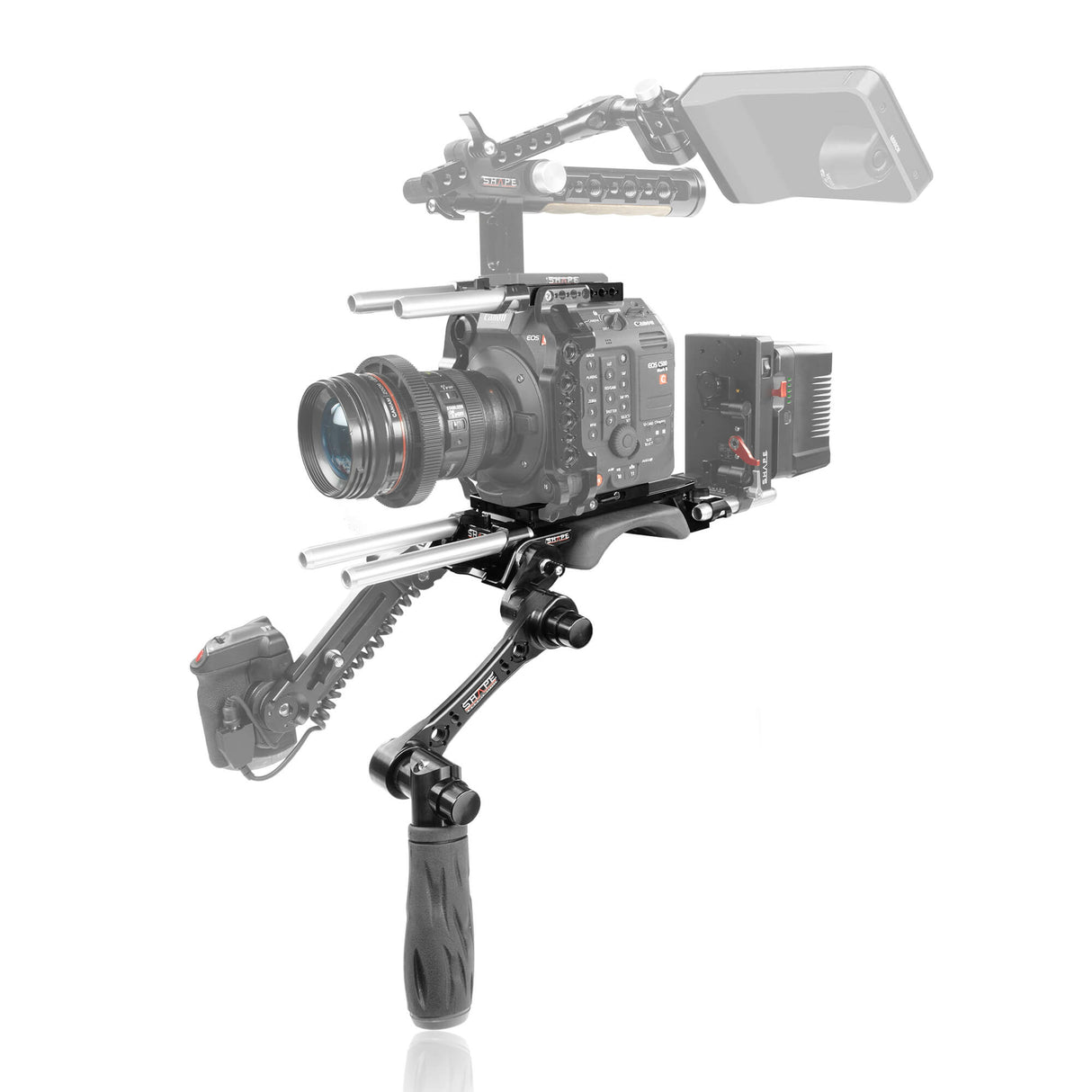

Plaque supérieure et plaque de base avec poignée pour Canon C500 Mark II, C300 Mark III

Ajoutez des accessoires et des fonctionnalités portatives à votre appareil photo Canon EOS C500 Mark II et C300 Mark III avec ce kit de SHAPE. Ce kit comprend une plaque de base pour montage à l'épaule avec un système de tige de 15 mm, une plaque supérieure, une plaque d'adaptation et une poignée rosette avec Push-button noir. La plaque de base comprend un support d'épaule intégré qui vous permet de convertir votre caméra montée sur un trépied en une caméra d'épaule. La plaque d'adaptation se fixe à l'arrière de la caméra pour la soutenir sur la plaque de base. Les tiges de 15 mm vous permettent de monter des accessoires supplémentaires tels qu'un matte box et un follow focus. La poignée avec Push-button se fixe à la plaque de base et peut pivoter à l'aide des articulations à rosette pour obtenir la position la plus confortable.

Canon C500 Mark II, C300 Mark III V-lock quick release baseplate (C52BP)

Canon C500 Mark II, C300 Mark III adapter plate (C52AP)

The Canon EOS C500 Mark II Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Canon EOS C500 Mark II camera base.

Canon C500 Mark II, C300 Mark III top plate (C52TP)

Lightweight and robust CNC machined aluminum top plate designed to fit with the native Canon EOS C500 Mark II top handle. The top plate offers 1/4-20 and 3/8-16 threads with Arri standard anti rotating holes, which can be used to attach options around the camera. The top plate comes with a 3/16’’ Hex wrenche and (4) captive screws ¼-20 3/8 to attach the top plate to the camera

• Top side: (8) ¼-20 and (2) 3/8-16 threaded holes with Arri anti rotating holes


• Top side: (18) ¼-20 threaded holes


• Sides: (10) ¼-20 threaded holes with Arri anti rotating holes

DOUBLE QUICK HANDLE ARRI ROSETTE SINGLE SHADOW (HAND2S)

Left or right ARRI Rosettes handgrips that can be attached to cameras or camera support hardware that has standard ARRI rosettes. The arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing you to adjust the arm for your comfort. The arm attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place. The arm is also designed with (2) ¼-20 and (2) 3/8-16 threaded holes with locking attachment stoppers for additional mounting options and to strongly secure the camera accessories in position.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

15 mm 8 in rods (15TUBE8)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 8-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

15 mm in rods (15TUBE4)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 4-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

(1) Plaque de base pour montage à l'épaule (BP20), (1) plaque d'adaptation, (1) plaque supérieure, (1) poignée gauche avec rosette Arri et Push-button, (1 paire ) de tiges de 15 mm 8'', (2 paires) de tiges de 15 mm 4''.
