Baseplate 15 mm LW, poignée supérieure et bras push-button EVF pour Panasonic Au-EVA1

Panasonic Au-Eva1 15 mm base (EVAB15)

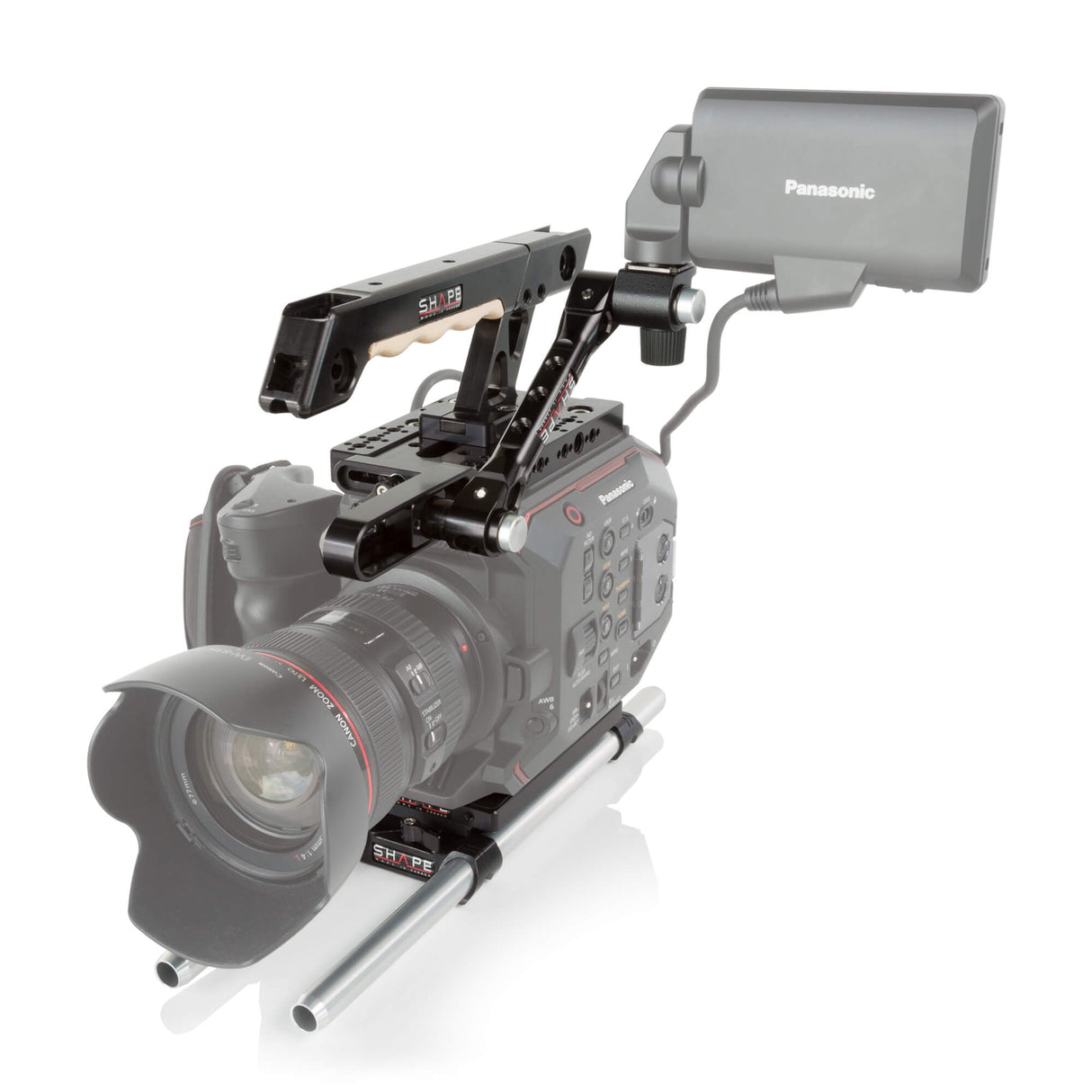

The SHAPE Baseplate with 15 mm Rod System is designed for use with the Panasonic AU-EVA1 camera. It features four attachment points for securely mounting the AU-EVA1 to a camera rig. The baseplate also comes with a pair of 15 mm rods that are 12” long through the length of the baseplate. By unscrewing the bottom section of the baseplate with the included Allen key, you get an adapter plate featuring several 1/4″-20 and 3/8″-16 mounting holes for mounting and balancing your camera on equipment like a tripod, gimbal, or drone.

Panasonic Au-Eva1 handle EVF mount (EVAHVF)

Lightweight and robust CNC machined aluminum top plate and top handle designed to give you a solid and comfortable grip for the manipulation of your camera. The top plate offers an array of 1/4″ and 3/8″ threads which can be used to attach options around the camera.

The top handle grip frame is made from robust CNC machined aluminum and the finger grip is made from genuine Canadian maple wood for maximum comfort. You can quickly adjust and lock the handle length for an extension of approximately 3 inches from its original position in order to optimize the balance of your camera to your lens type. The view finder bracket arm feature SHAPE patented push-button technology. By simply pressing the button, you are allowed a 360-degree rotation to place your view finder in the best position for your use. Push, adjust, release, and then its lock. In addition, the view finder L-Bracket is designed with two ratchet knobs for horizontal and vertical adjustment of your view finder.

The handle grip frame is made from robust CNC machined aluminum and the finger grip is made from genuine Canadian maple wood for maximum comfort. You can quickly adjust and lock the handle length for an extension of approximately 3 inches from its original position in order to optimize the balance of your camera to your lens type. The top handle also features six threaded holes perfect to attach and manipulate more camera accessories like our Push-Button arm (RPB2A).

• Several threaded holes to optimize your rig with our ‘ REVOLT Push-Button Magic Arm Series,’ designed to attach and manipulate your camera monitor or other camera accessories


• (4) Four ¼-20 threaded holes (Front). Perfect for more attachment options


• (2) Two Hot Shoe Brackets (Front and Back of Handle).


• View finder bracket arm designed with SHAPE patented push-button technology

Panasonic Au-Eva1 Push-Button view finder mount (EVVF)

The Push-Button Viewfinder Mount from SHAPE is compatible with the Panasonic AU-EVA1 camera. The mount is designed with an L-bracket with two ratchet knobs for quick mounting and adjustment. It features two points of articulation with SHAPE patented push-button design allowing horizontal, vertical, and transversal adjustment of your viewfinder. By simply pressing the button, you are allowed a 360-degree rotation to place your view finder in the best position for your use. Push, adjust, release, and then its lock. The viewfinder can be secured to the bracket with a captive screw, and three 1/4″-20 threaded holes provide additional mounting options.

15 mm 12" rods (15TUBE12)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 12-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

(1) BASEPLATE WITH ROD BLOC SYSTEM (EVAB15), (1) PANASONIC AU-EVA1 ADAPTER PLATE, (1) EXTENDABLE REVOLT TOP HANDLE WITH EVF MOUNT, (1) PUSH BUTTON MAGIC ARM WITH VIEW FINDER BRACKET, (2) 15 MM RODS 12”
