Plaque de fixation coulissante 19 mm Studio pour Sony Venice

Élévateur coulissant et le levier de verrouillage h2> L'élévateur permet de régler la position de la caméra en montée sur la plaque de pont par rapport au 19 mm Studio Center optique de la caméra Sony Venice. Un levier de verrouillage facile d'accès, situé sur le côté de la colonne montante, vous permet de fixer la plaque de l'appareil fermement en place. Il y a aussi une goupille de sécurité à déclenchement rapide qui empêche la plaque de l'appareil de glisser l'élévateur qui est pleinement engagé lorsque le loquet rend un son audible « clic ». Plusieurs 1/4 "-20 et 3/8" -16 trous filetés sont également disponibles pour la fixation de l'élévateur sur la plaque de pont. Il est également conçu pour régler la caméra Sony Venice à la bonne hauteur par rapport à la caméra Optical Center

SHAPE lightweight Arri standard 12 inches dovetail plate (DP12A)

Use this ARRI Standard 12″ Dovetail Plate from SHAPE when balancing front- or back-heavy camera loads. The studio bridgeplates 19 mm or 15 mm Arri standard (DPK19, DPK15) can easily slide onto the lightweight ARRI standard 12″ dovetail plate for additional leverage and mounting options. Both the aluminum, Teflon-coated design and tapered ARRI dovetail configuration allow your mounted equipment to slide back and forth easily. A stopper screw on one end and a safety latch on the other prevent your equipment from accidentally sliding off the plate. There are twelve 1/4″-20 and five 3/8″-16 threads down the center of the plate for mounting.

SHAPE Bridge plate 19 mm studio Arri standard (DP19S)

The studio bridgeplate can easily slide onto the lightweight ARRI standard 12″ dovetail plate (DP12A) for additional leverage and mounting options. It is made of CNC aluminum and it is also designed with locking levers to secure the bridgeplate to the dovetail. The ARRI Standard Studio Bridgeplate comes with two tapered, 12″ 19 mm rods (19TUBE12) to easily mount and dismount your camera and accessories. The studio-offset rods are spaced 104 mm apart. One 1/4″-20 and one 3/8″-16 screw allow mounting a variety of cameras, and the plate locks and slides up and down the rods with the use of a locking lever. A flat screwdriver is provided to tighten the mounting screws, and it can be attached to the bridgeplate with a magnet.

19 mm 12" rods (19TUBE12)

This pair of SHAPE 19 mm Aluminum Rods (12″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 19 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.

The rods are each 19 mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

19 mm 12" rods (19TUBE12)

This pair of SHAPE 19 mm Aluminum Rods (12″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 19 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.

The rods are each 19 mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

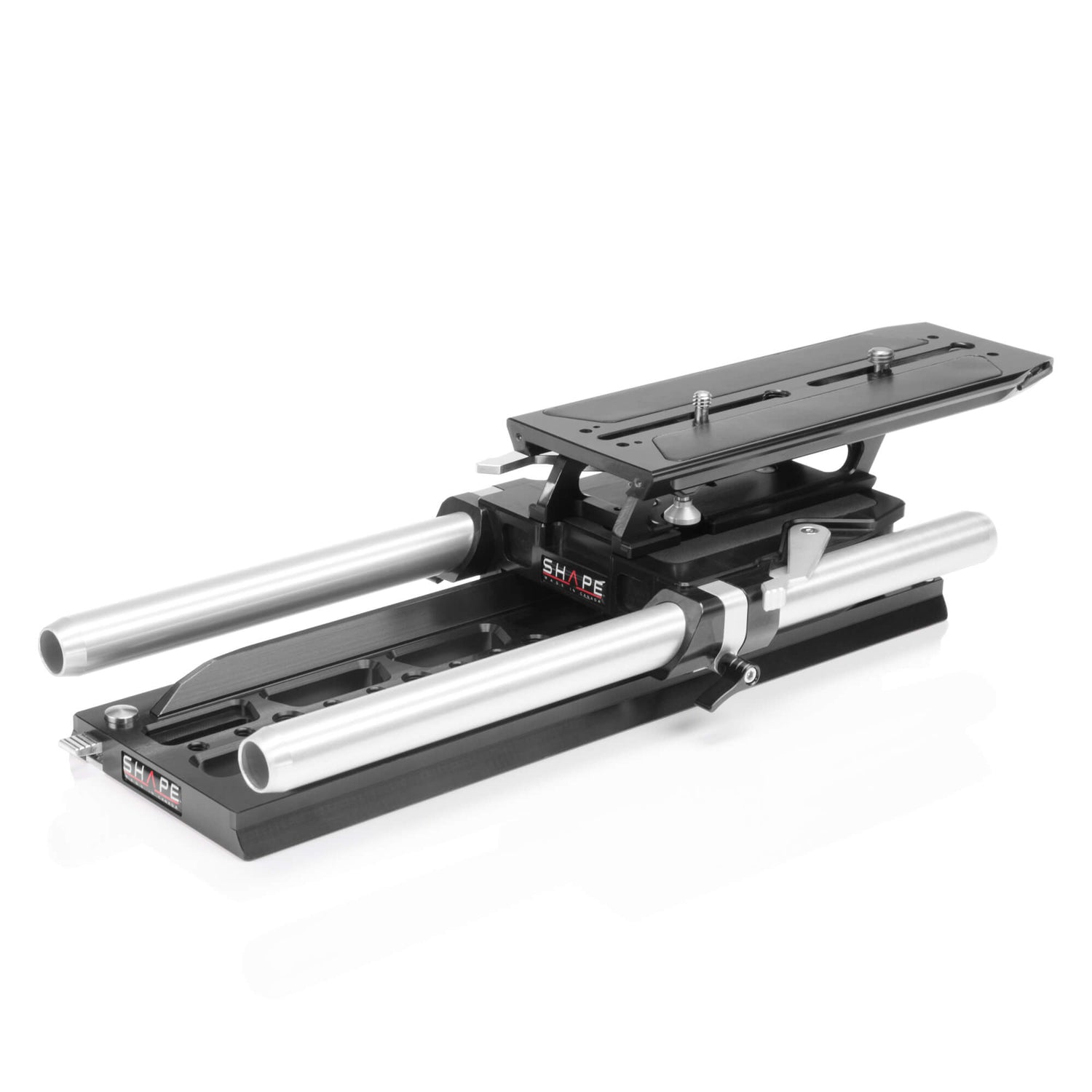

(1) ARRI STANDARD 12″ SLIDING DOVETAIL, (1) 19MM STUDIO ARRI STANDARD BRIDGE PLATE, (1) SLIDING RISER AND LOCKING LEVER, (1) SLIDING CAMERA PLATE, (1) PAIR OF 19MM RODS (12'')
