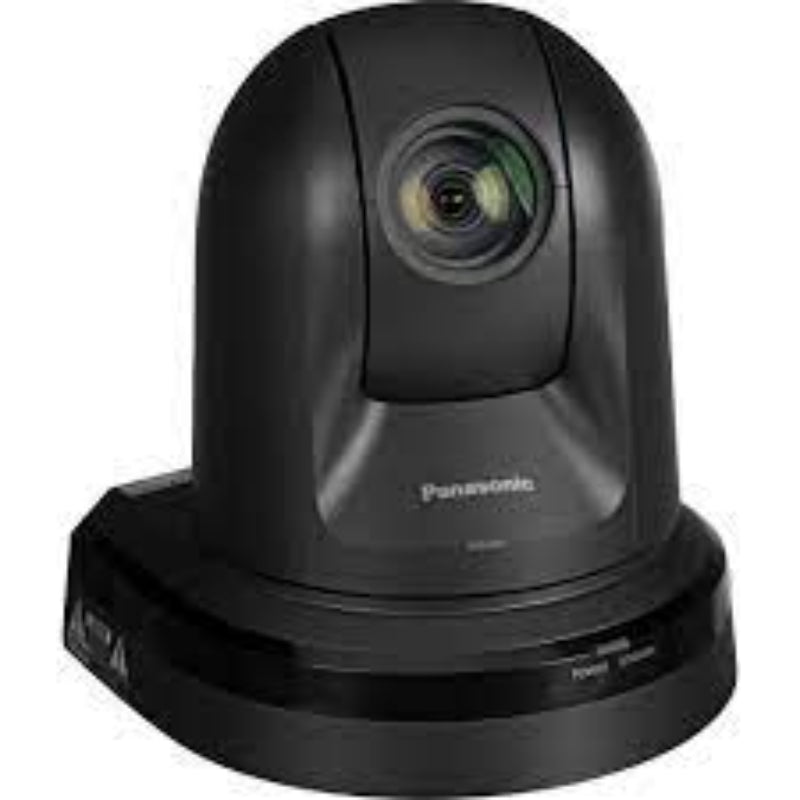

PANASONIC AW-HE40SKEJ Caméra tourelle Full HD SDI

Fonctions principales :

Zoom optique 30× (zoom numérique 10× + extenseur de zoom numérique)

Vaste plage dynamique

Sortie vidéo : HD-SDI

Prise en charge PoE+

La connexion IP permet de contrôler jusqu'à 100 unités AW-HE40H/S à l'aide du AW-RP50E et la fonctionnalité de sortie d'images IP permet de surveiller les images avec une connexion IP à l'aide d'un ordinateur

• Capteur MOS de type 1/2,3

• Zoom optique 30× (zoom numérique 10× + extendeur de zoom numérique)

• Prise en charge PoE+

• Entrée audio

• Mode nuit *1 – Prise en charge du basculement automatique

• Mode HDR (High Dynamic Range)

• Entrée vidéo : HD-SDI

• Format de sortie vidéo HDMI : 1080/50i, 1080/59.94i, 1080/25ü, 1080/29.97p, 1080/25psF, 1080/29.97psF, 720/50p, 720/59.94p

• Fonctionnalité de gel de l'image durant les préréglages

• La connexion IP permet de contrôler jusqu'à 100 AW-HE40H/S à l'aide du AW-RP50E

• La fonctionnalité de sortie d'images IP permet de surveiller les images avec une connexion IP à l'aide d'un ordinateur

• Entrée / Sortie RS422, RS232C

• Mémoire préréglée contenant jusqu'à 100 positions

• Disponible en blanc et noir

• Installation simplifiée grâce au mécanisme de verrouillage

EAN 5025232831777

Power Requirements DC 12 V (Supplied AC adaptor) DC 42 V to 57 V (PoE+ power supply)

Current Consumption1.2 A (Supplied AC adaptor) 0.4 A (PoE+ power supply)

Ambient Operating Temperature0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature–20 °C to 50 °C (–4 °F to 122 °F)

Allowable Humidity Ranges20 % to 90 % (no condensation)

Mass Approx. 1.5 kg (3.30 lb)

Dimensions (W x H x D)160 mm x 186 mm x 166 mm (6-5/16 inches x 7-41/128 inches x 6-17/32 inches) [excluding protrusions, direct ceiling mount bracket]

Controller Supported*1AW-RP50, AW-RP120, AK-HRP200

Input Mic/line input Stereo mini-jack (ø3.5 mm) Input impedance: Approx. 2 kΩ (unbalanced) [Mic input] Supported microphones: Stereo mic (plug-in power, on/off switching via menu) Supplied voltage: 2.5 V ± 0.5 V Mic input level: –60 dBV ± 3 dBV [Line input] Input level: -10 dBV ± 3 dBV

Output Video output HDMI: [AW-HE40HW/HK] HDMI connector * HDCP is not supported. * VIERA Link is not supported. HD SDI OUT: [AW-HE40SW/SK] Compliant with the SMPTE292M standards/75 Ω(BNC x 1)

Input/Output Input/Output connector LAN: LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function RS-232C: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT) RS-422: CONTROL IN RS422A (RJ-45) USB: Mini-B port SD card: microSD card slot.

Imaging Sensors1/2.3-type MOS

Lens Motorized 30x zoom, F1.6 to F4.7 [f=4.3 mm (11/64 inches) to 129 mm(5-5/64 inches); 35 mm (1-3/8 inches) equivalent: 31.6 mm (1-31/128 inches)to 962.0 mm (37-7/8 inches)]

Focus Switching between auto and manual

Focus Distance Entire zooming range:1.2 m (3.94 ft) Wide end: 10 cm (0.33 ft)

Color Separation Optical System On-chip color filter system

Minimum Illumination 59.94 Hz: 0.7 lx (50 IRE, F1.6, 48 dB,1/60 without accumulation) 0.35 lx (50 IRE, F1.6, 48 dB,1/30 with accumulation[Frame Mix 6 dB]) 50 Hz: 0.7 lx (50 IRE, F1.6, 48 dB,1/50 without accumulation) 0.35 lx (50 IRE, F1.6, 48 dB,1/25 with accumulation[Frame Mix 6 dB])

Horizontal Resolution1000 TV lines Typ (Center area)

Frame Mix*3Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB

Electronic Shutter SpeedDuring Full Auto:1/30 to 1/2000 [59.94 Hz], 1/25 to 1/2000 [50 Hz] During Auto: 1/60 to 1/2000 [59.94 Hz], 1/50 to 1/2000 [50 Hz] DuringManual:1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz], 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz

White Balance AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K)

Chroma Amount Variability ±3 step

Scene File Full Auto, Manual1, Manual2, Manual3

Output Format HD 1080:59.94i/50i 1080:29.97p/25p 1080:29.97PsF/25PsF 720:59.94p/50p

Synchronization System Internal synchronization

Video Output USB Video Class Ver1.0

Résolution 1920 x 1080, 1280 x 720, 640 x 360

Frame Rate max 30 fps (System frequency 59.94 Hz) max 25 fps (System frequency 50 Hz)

Audio Output USB Audio Class Ver1.0

Supported Models Devices standardly equipped with a USB 2.0 compatible port

Pan/Tilt Operation Speed Maximum speed during preset: 300°/s Maximum speed during manual: 90°/s

IP Connecting Cable When connecting through a hub: LAN cable*6 (category 5 or above),max. 100 m (328 ft) When using a PoE+ hub: LAN cable*6 (category 5e or above),max. 100 m (328 ft) When a hub is not used: LAN cable*6 (category 5 or above),max. 100 m (328 ft)

AW Protocol Connecting CableLAN cable*6 (category 5 or above,straight cable), max. 1000 m (3280 ft)

Standard Protocol Connecting Cable Mini DIN 8-pin cable, male

SD Card Type micro SDHC (4 GB to 32 GB), micro SDXC (64 GB to 128 GB), Speed class 10 or higher
