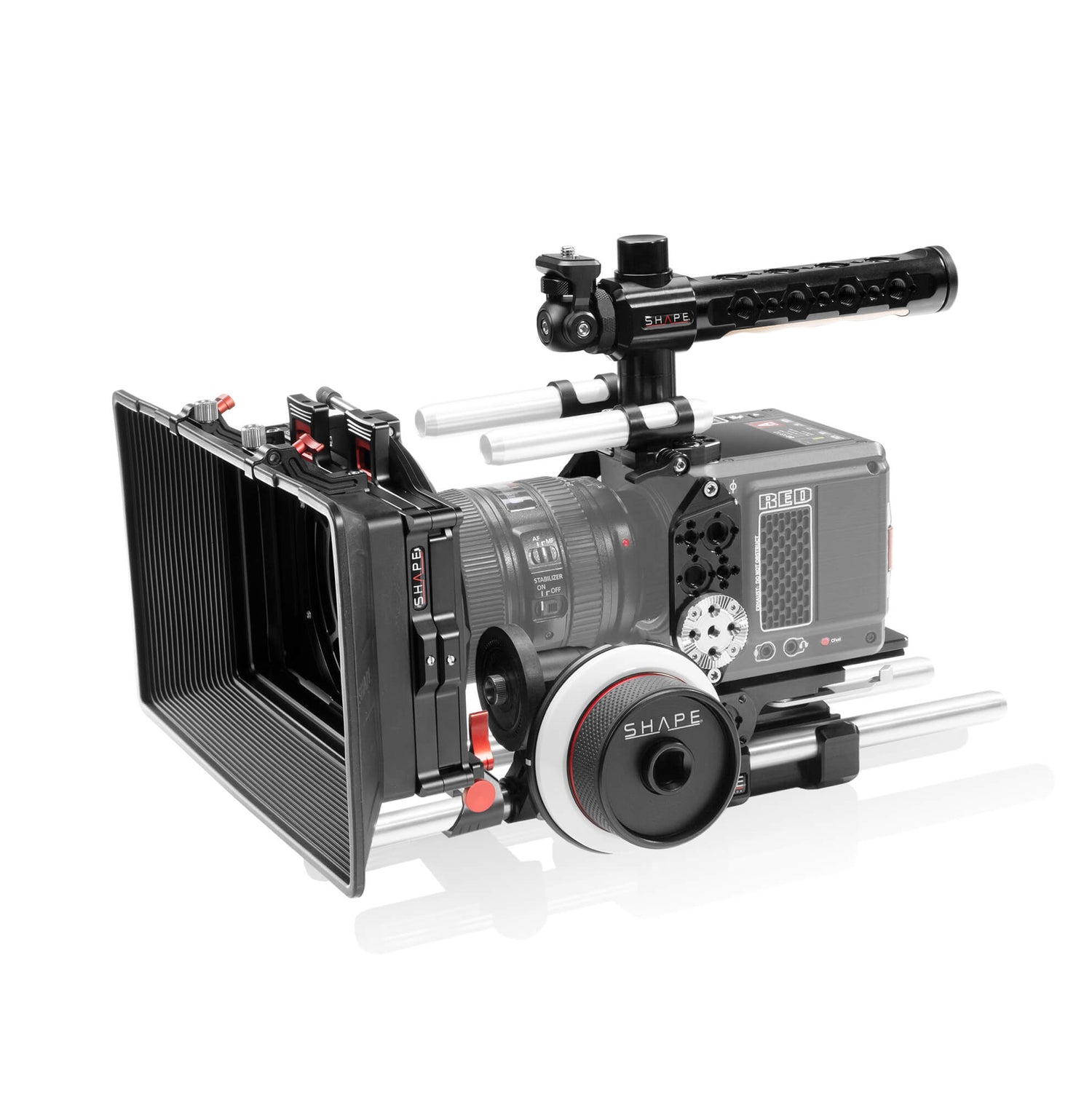

Kit SHAPE RED® KOMODO™ avec Matte box et Follow Focus

€2.353,69 EUR
Taxes incluses | Frais de livraison calculés lors du paiement.

Garantie : 0 mois

Conçu pour s'adapter au centre optique RED® KOMODO™ avec ou sans le module d'extension. Plaque de base LW 15 mm, plaque d'adaptation et une plaque dovetail Poignée supérieure en forme de L avec technologie Push-Button Poignée supérieure en aluminium CNC et en érable canadien. La poignée supérieure est dotée d'un support inclinable permettant de monter un moniteur, une lampe vidéo ou un microphone (jusqu'à 4,4 lb). La plaque supérieure est conçue avec un bloc de serrage pour tige LW de 15 mm. Les plaques latérales sont conçues pour recevoir une rosette ARRI La cage, la poignée et la plaque de base comportent plusieurs trous filetés anti-rotation (3/8-16, ¼-20). Kit follow focus 15 mm LWs Matte Box 4 x 5.6″. Fabriqué en aluminium CNC


Kit SHAPE RED® KOMODO™ avec Matte box et Follow Focus | Disponible en 24 à 72 heures. n'hésitez pas à nous consulter pour les délais


Nous prenons soin de vous

Notre positionnement sur le marché de la photo/vidéo fait de nous en tant que l'un des loueurs phares de matériel video professionnel en France le meilleur interlocuteur qui soit lorsque vous commandez chez nous.

Vous rencontrez un problème ? nous disposons d'un service après vente hors pair, de vrais professionnels à votre disposition et d'un atelier rapide et efficace.

Même si vous êtes hors garantie, nous pouvons intervenir sur vos appareils et leur donner une seconde vie.

Livraison et envoi

Nous travaillons avec les meilleurs transporteurs

également disponible en magasin

Description

SHAPE full camera cage with 15 mm LW rod system for RED® KOMODO™ (KOROD)



The three-piece cage kit, the 15 mm LW baseplate system and the L-shaped top handle offer protection and accessory-mounting threads for your RED Digital Cinema Komodo 6K camera.




SHAPE camera cage with top handle for RED® KOMODO™ (KOTHC)



The three-piece cage kit and L-shaped top handle offer protection and accessory-mounting threads for your RED® KOMODO™ camera. The L-shaped handle features a solid connection to your top plate using mounting screws. It also features the SHAPE Push-Button Technology, enabling you to balance the weight and rotate the handle in the position you need for a 360-degree axis. The handle is constructed from anodized aluminum and it is lined with a smooth, wooden finger grip made from Canadian maple. It features numerous 3/8″-16 ARRI-style anti-twist accessory threads. The front section of the handle features a cold shoe designed to receive a spring-loaded cold shoe foot. This spring-loaded cold shoe foot is designed with a tilting mount bracket with 1/4″-20 threaded screw to mount accessories like a monitor, a video light, or a microphone weighing up to 4.4 lb. Moreover, each end is secured with a knurled locking knob. Once the accessory is mounted, you can tilt it forward or backward and place it at the desired angle. The position is lockable with the included Allen key.





SHAPE camera cage for RED® KOMODO™ (KOCAGE)



The three-piece cage kit offers protection and accessory-mounting threads for your RED® KOMODO™ camera. This lightweight, three-piece cage maintains access to your camera's controls and ports and come with thread holes side plates with M6 ARRI rosette on both sides. Made of CNC anodize aluminum., the top plate (KOMOTP) can be mounted strongly at the top of your RED® KOMODO™ camera using two 1/4″-20 UNC socket head cap screws. The plate features 3/8″-16 and ¼ 20 UNC threaded mounting holes, including the ARRI anti-rotating system to better secure your accessories. Two removable 15 mm LW rod bloc clamp (15CTH) can be mounted at the front of the top plate, allowing easy positioning of your accessories. Each sides of the rod bloc clamp are also designed with a ratchet system to strongly secure your rods to the rig.


Side plates threaded holes:



  • (2) 3/8-16 with anti-rotating

  • (2) ¼-20 with anti-rotating

  • (1) Arri Rosette mount on each side plate


Top plate threaded holes:



  • (1) 3/8-16 with anti-rotating

  • (4) ¼-20 with anti rotating

  • (9) ¼-20





SHAPE RED® KOMODO™ 15 mm lightweight Baseplate (B15KOMO)



The 15 mm LW Baseplate system is designed to match the RED® KOMODO™ optical center with or without the expander module. It features an adapter plate, a dovetail spacer with Arri rosette mounts and a 15 mm LW baseplate. Strongly mount the dovetail plate at the bottom of your camera body with 1/4-20 and 3/8-16 screws. The dovetail plate slides into the dovetail spacer which is mount to the 15 mm LW baseplate. Simply slide out from your dovetail spacer and slide it back into your ronin 2 gimbal system without having to screw or unscrew any plates. The dovetail spacer can receive SHAPE Arri rosette on both sides and features 3/8"-16, ARRI-style anti-twist threads to mount accessories. The 15 mm LW baseplate comes with a pair of 15 mm rods 12” and the bottom of the plate features several 1/4″-20 and 3/8″-16 mounting holes for mounting and balancing your camera on equipment like a tripod.




SHAPE kit focus single rod follow focus 15 mm LWs (FA123)



Use the compact SHAPE Follow Focus Kit with Single 15 mm Rod Clamp with your camera setup to make focus pulling easy. The modular design allows you to add and remove any of the components without screws or tools, and its small profile allows the addition of a matte box or accessories around your lens. At the core of the kit is a rubber, anti-slip follow focus wheels attached to a single aluminum 15 mm rod clamp. The clamp rotates to adjust to most lens sizes, and it's tightened by a locking lever. The clamp's rotation also allows the focus wheel to easily swing out of the way when changing lenses. Five drive gears are included to fit a variety of lens sizes: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T. The gears can be flipped from front to back to facilitate different lens configurations. A 49 mm rubber friction wheel is also included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses. For alternate fine-focus configurations, use the included speed crank or 11" whip, both of which attach to the center point of the knob. Four magnetic marking disks are included to attach to the focus wheel.



  • At the center of the knob, an ARRI-standard accessory port for attaching separately available accessories such as a whip or a speed crank;

  • All gears can be flipped to the front or back position which is helpful for compact lens configurations;

  • Two rotation points (one on the rod and one on the body) allowing you to get the follow focus perfectly aligned vertically on the side of the camera body;

  • Swing Arm Design allows you to simply pull the follow focus away from the lens for a quick lens change then you can push it back into place when you're ready;

  • A compact design takes little space, so you can still attach a matte box to the front;

  • Use the swing arm to properly align the follow focus and then you can tighten the thumbscrew on the bottom to keep it in place.




SHAPE MATTE BOX SWING-AWAY (AKSWA)



A silicone matte box mounted on a CNC aluminum main frame with an outer diameter of up to 124 mm. It provides a wide field of view for a variety of wide-angle lenses.

Two 4x5.6 filter trays (one rotary) with easy access handles that allow one-handed filter changes. 4x4 filters can also be installed in the trays. The frame includes two stops at the bottom of the filter trays section to prevent the filters from falling through. The removable swing-away module makes lens changes a snap. A spring pin helps to lock the mechanism closed without manually setting the pin. 2 magnets hold it in place when closed.

Removable height adjustable rod block with one tightening knob allows micro-adjustment of height, ensuring compatibility with a wide range of lenses. The rod block can be re-installed directly on the main frame for a straight configuration. The complete kit allows three different configurations, (swing-away, straight and clip-on).


Removable light carbon fiber french flag can be attached to the top to prevent flares. A series of adapter rings are included in the kit:
















Clamp-on adapter ring: 124-87 mm Threaded aluminum adapter rings: 87-82 mm


87-77 mm


87-72 mm


87-67 mm Fabric knicker: 124 mm




15 mm 12" rods (15TUBE12)



One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.



  • 15-mm diameter

  • 12-in length

  • Hollow, non-threaded

  • Tapered ends for easy connection to a rod block

  • Aluminum coated with a clear finish

Spécifications techniques

Contenu du kit

(1) Cage de caméra avec pour RED® KOMODO™

(2) Bloc de serrage pour tige LW 15 mm (15CTH)

(1) poignée supérieure en forme de L avec technologie Push-Button

(1) Plaque de base 15 mm LW avec (1) plaque d'adaptation et (1) plaque dovetail (B15KOMO)

(1) Follow Focus (FA123)

(1) Matte Box 4 x 5.6″ (AKSWA)

(1 Paire) Tiges de 15 mm 12″ (15tube12)
